Products name
UHMWPE rope HMPW rope Winch rope with high quality
Key Words:
UHMWPE rope / HMPW rope / Winch rope
Product Description

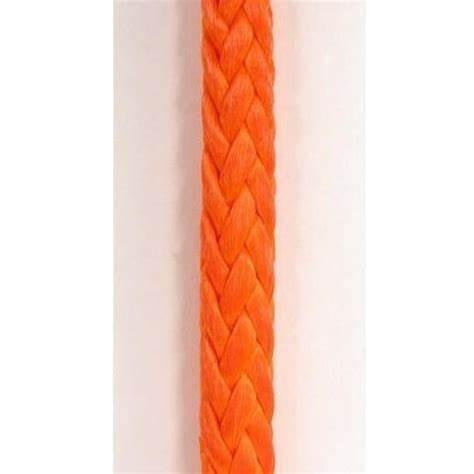

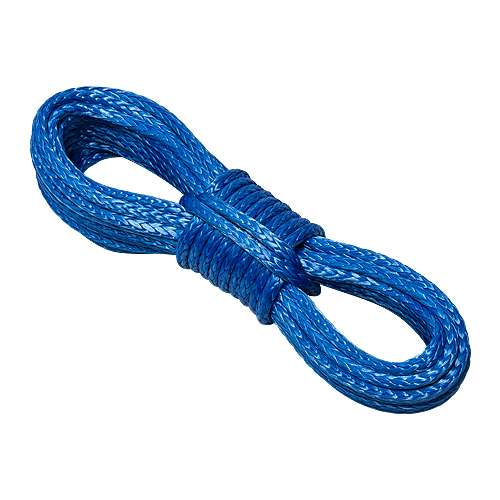

Y-MAX Rope is a torque-free 8- strand &12-strand single braided rope that size for size and is as strong as steel of above making it an excellent wire rope replacement. at only 1/8th the weight of wire, it has a safe and efficient solution for all marine applications where wire is yraditionally used.The combination of UHMWPR rrovide abrasion and tension fatigue resistance for superior wear. it is spliced and in-spected.
Main Performance
Material: Ultrahigh molecular weight polyethylene (UHMWPE)
Construction:12 strand braided
Treatment: Marine finish, Offshore
Standard Color:Yellow(also available by special order in red, green.blue, orange.etc)
Approx.Spec.Density 0.975 floating
Meling Point:1451 celsius degree
Abrasion Resistance:Excellent
U.V resistance:GOOD
Temperature resistance:7010 max continuous
Chemical Resistance:Excellent
Dry&Wet Conditions: Wet strength equals dry strength
Range of use:Fishing ,off shore installation ,mooring
Coil Length:220m
Spliced strength:±10%
Weight and Length tolerance:±15%
MBL=Minimum breaking load conform ISO 2307
Other sizes available upon request
Parameter Table
| Dia | CIR | WT | B/S |
| MM | INCH | INCH | KGS/100M | LBS/100FT | TON | KN |
| 6 | 1/4 | 3/4 | 2.3 | 1.5 | 4.3 | 42 |
| 8 | 5/16 | 1 | 3.7 | 2.5 | 6.7 | 66 |
| 10 | 13/32 | 1-1/4 | 5.6 | 3.7 | 9.7 | 95 |
| 12 | 15/32 | 1-1/2 | 7.9 | 5.3 | 13.3 | 131 |
| 14 | 9/16 | 1-3/4 | 10.6 | 7.1 | 17.8 | 174 |
| 16 | 5/8 | 2 | 13.7 | 9.2 | 22.9 | 225 |
| 18 | 23/32 | 2-1/4 | 17.3 | 11.6 | 28.8 | 282 |
| 20 | 13/16 | 2-1/2 | 21.2 | 14.3 | 35.3 | 346 |
| 22 | 7/8 | 2-3/4 | 25.6 | 17.2 | 42.5 | 416 |
| 24 | 15/16 | 3 | 30.4 | 20.4 | 50.3 | 493 |
| 26 | 1-1/32 | 3-1/4 | 35.7 | 24 | 58.8 | 573 |
| 28 | 1-1/8 | 3-1/2 | 41.3 | 27.8 | 67.8 | 665 |
| 30 | 1-3/16 | 3-3/4 | 47.4 | 31.8 | 77.5 | 760 |
| 32 | 1-1/4 | 4 | 53.9 | 36.2 | 87.8 | 860 |
| 34 | 1-11/32 | 4-1/4 | 60.8 | 40.8 | 98.6 | 966 |
| 36 | 1-7/16 | 4-1/2 | 68.1 | 45.8 | 110 | 1078 |
| 38 | 1-1/2 | 4-3/4 | 75.9 | 51 | 122 | 1196 |
| 40 | 1-19/32 | 5 | 84 | 56.5 | 135 | 1318 |
| 42 | 1-21/32 | 5-1/4 | 92.6 | 62.2 | 148 | 1447 |
| 44 | 1-3/4 | 5-1/2 | 102 | 68.3 | 161 | 1581 |
| 46 | 1-13/16 | 5-5/8 | 111 | 74.6 | 176 | 1720 |
| 48 | 1-7/8 | 6 | 121 | 81.3 | 190 | 1860 |
| 50 | 2 | 6-1/4 | 131 | 88 | 205 | 2013 |
| 52 | 2-1/16 | 6-1/2 | 142 | 95.3 | 221 | 2167 |
| 56 | 2-1/4 | 7 | 164 | 111 | 254 | 2490 |
| 60 | 2-3/8 | 7-1/2 | 189 | 127 | 289 | 2831 |
| 64 | 2-1/2 | 8 | 215 | 144 | 326 | 3191 |
| 68 | 2-11/16 | 8-1/2 | 242 | 163 | 364 | 3567 |
| 72 | 2-7/8 | 9 | 271 | 182 | 404 | 3961 |
| 80 | 3-5/32 | 10 | 335 | 225 | 488 | 4787 |
| 88 | 3-7/16 | 11 | 405 | 272 | 578 | 5669 |
| 96 | 3-13/16 | 12 | 481 | 324 | 673 | 6599 |
Our Services
1.We can provide professional before sale service , help clients to figure out the best solution for the projects.
2.Fast production and delivery time.
3.Professional after sale service. 1 year warranty
4.We can help clients to arrange shipment.
5.We can provide free samples for our dear clients.
FAQ
1. What's your advantage?

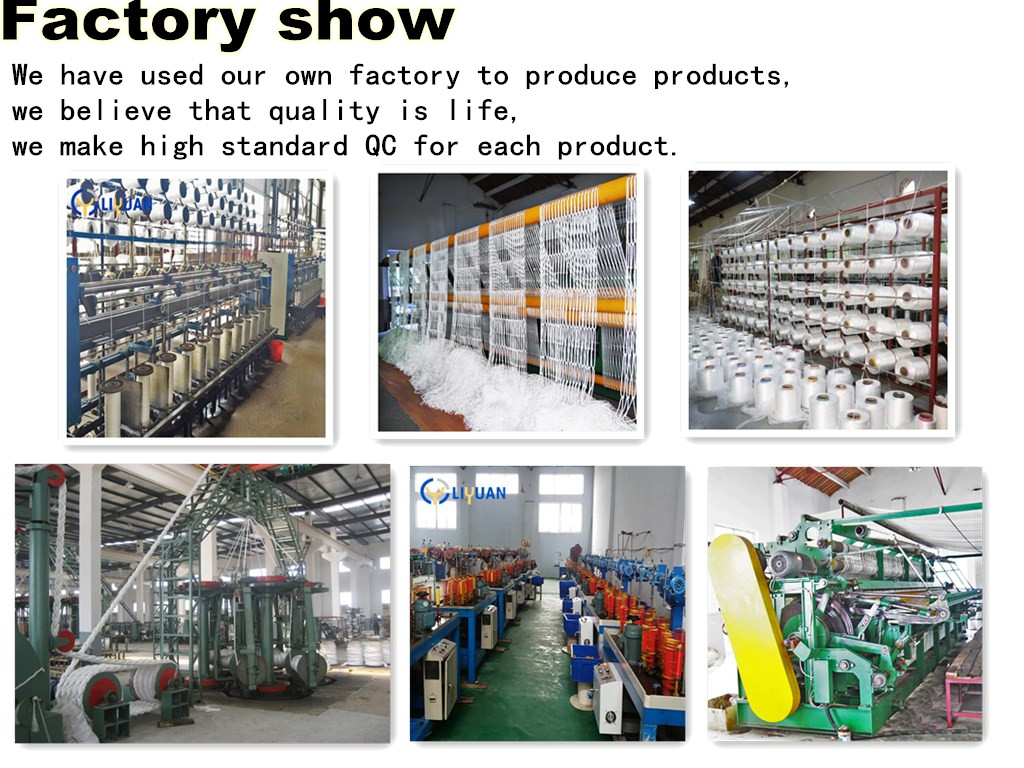

We are manufacturer , we produce yarn in our own factory(also sell yarn to most of rope&net company in China), and we have advantaged equipments & experianced employees to make Rope&Net.
2.Can you do OEM/ODM?
Yes, of course we can, pls let us to know your detailed requirements.
3.How's the quality control in your company?

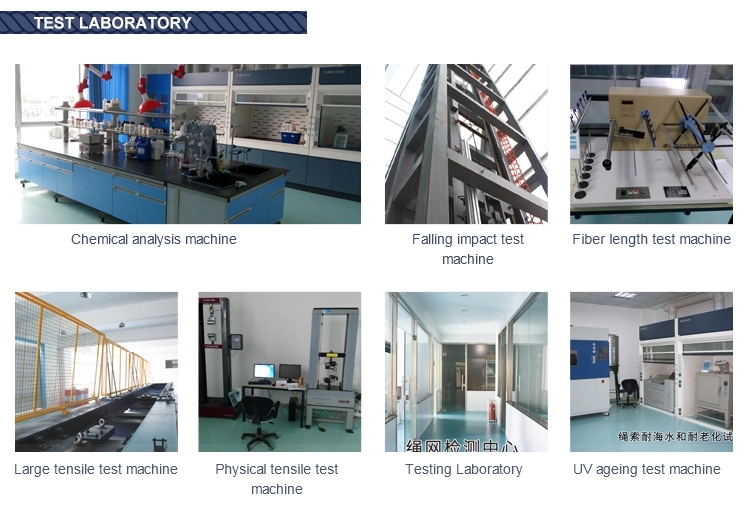

We make high standard QC for each product.
4.How do i know the production details if i place the order?
Middle production-send photos or videos to show you our production line which you can see your products.
5.Can i buy some samples before make the order?
Samples are free for our dear clients, pls click here to get free samples.
6.24 hours service: 0086 153 6641 6606 (viber/wechat/whatsapp in service)
We are manufacturer so everything is customized, if any questions or any special requirements, pls come back to us!
